Outdoor Photo Beams

  • ABT two beams Frequency conversion detector
  • ABT two beams Frequency conversion detector
  • ABT two beams Frequency conversion detector
  • ABT two beams Frequency conversion detector
  • ABT two beams Frequency conversion detector
ABT two beams Frequency conversion detectorABT two beams Frequency conversion detectorABT two beams Frequency conversion detectorABT two beams Frequency conversion detectorABT two beams Frequency conversion detector

ABT two beams Frequency conversion detector

  • 1. ABT Series
  • 2. Frequency conversion
  • 3. Engineering ABS material
  • 4. Integrative structure for waterproof, dustproof and mothproof
  • INQUIRY   EMAIL

Specification:

■ Two beams detection mode: two infrared beams were cut off at the same time

■ Trip time: 50ms, 100ms, 250ms, 500ms (optional)

■ Beam frequency: 4 optional

■ Power supply voltage: DC 10V-24V

■ Current max: 90mA

■ Alarm cycle: 2S, 50ms (optional)

■ Protection level: IP65

■ Working temperature: - 25℃ -55℃

■ Ambient humidity: 95% Max

■ Correction angle: 180 degrees (90 degrees), vertical 90 degrees (10 degrees)


Features:

1. 2 beams active infrared detector: can reduce the false alarms that are caused by bird, pet leaf...etc.

2. Selectable frequency 8 channels: Stacking, Straight line, Square or other various applications are allowed.
3. LED display signal grade for easy alignment.
4. Adopt digital DIP technology, frequency, sensitivity, indicator and operation power can be adjusted through DIP switches.
5. Special-purpose DSP chip, patent multidimensional fault-tolerant, true detection alarm technology.
6. NC/NO relay outputs, compatible with other brand alarm systems like Honeywell, Bosch, Paradox, DSC, GE Alef, HONEYWELL etc.

7. Anti-glare up to 50,000 LUX, built-in automatic adjustment strong light filtering system.

8. AGC circuit: when faced with fog or inclement weather,t he detector sensitivity will increase automatically.
9. Fully seal structure, with rain cover design, C relay output.

10. External Protection: Protection from rain, dust & insects.
11. Sniper viewfinder with x2 magnification

12. Horizontal ±90° / vertical ±10° optical angle can be easy to adjust.


Package:

White Box: 21*19*9.5CM/ 900G/ Pair

PCS/CARTON: 20PCS

GW/CARTON: 18KG

CARTON SIZE: 44*40*50 CM

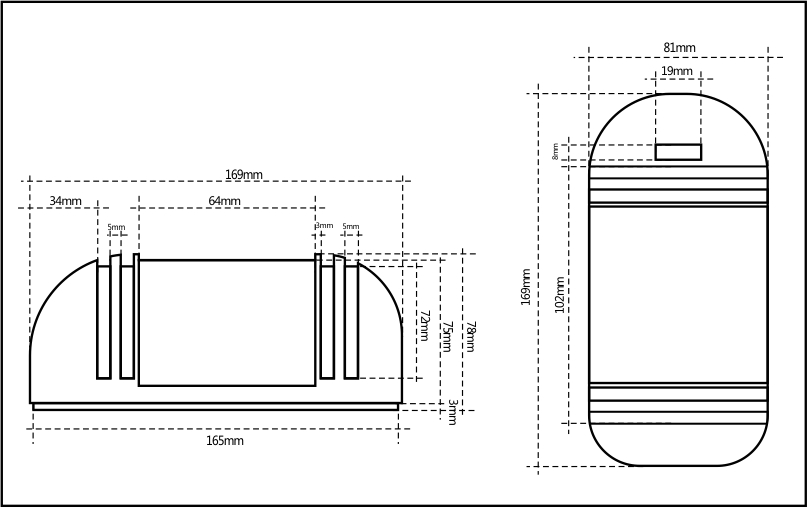

Dimensions:


Inquiry:
